Product Description

Details of multilateral bending center:

A set of universal and universal bending molds, automatic press adjustment device, which can meet the needs of mass production or complete production of multiple varieties and small batches. The unique intelligent automatic compensation system MAC2.0 for sheet metal characteristics enables equipment to adapt to changes in the sheet metal and external environment. The entire bending process does not require manual intervention, ensuring the high quality and repeatability of the workpiece. Bend workpieces of different shapes, materials, and sizes, with a "0" second adjustment time to ensure efficient production. Built in robot loading and unloading integrated interface. Equipped with IoT technology. Extremely low unit cost and extremely high investment return.

Polygonal bend center feature:

The unique intelligent automatic compensation system MAC2.0 for sheet metal characteristics enables equipment to adapt to changes in the sheet metal and external environment.

Universal, universal bending mold. Rapid prototyping of workpieces with high consistency. Ergonomic design, easy to understand operation, and flexible programming. Suitable for a wide range of materials, mainly including stainless steel, cold rolled sheet, and other materials.

Functions of the multilateral bending center system:

The unique control system of the multilateral bending center allows the bending knife to perform complex and unique traveling bending, achieving precise multi angle bending, semi open edge pressing and other forming technologies. At the same time, the automatically adjustable bending mold and adaptive bending compensation technology ensure high efficiency and precise angle quality without the need for mold replacement. Easily achieve complex sheet metal bending requirements such as arcs, dead edges, returns, and closed shapes. The biggest advantage of one-time forming with a multilateral bending center is that it improves production efficiency.

Application scope of multilateral bending centers:

steel furniture, kitchenware, elevators, network chassis and cabinets, metal sheet processing, automotive manufacturing, aerospace, new energy industry, and other fields

Steps for using the multilateral bending center:

Confirm the normal working status of the machine and ensure that the blade and workpiece positions are appropriate. Set bending parameters, based on the requirements of the workpiece and the characteristics of the material, set the correct bending parameters, such as angle, length, etc. Accurately place the workpiece to be processed on the workbench of the bending center, and the positioning fixture automatically clamps. Press the start button to start the machine. According to the preset program, different tools are automatically switched during the bending process to meet the bending needs of different shapes and angles. After the bending task is completed, the machine automatically stops working.

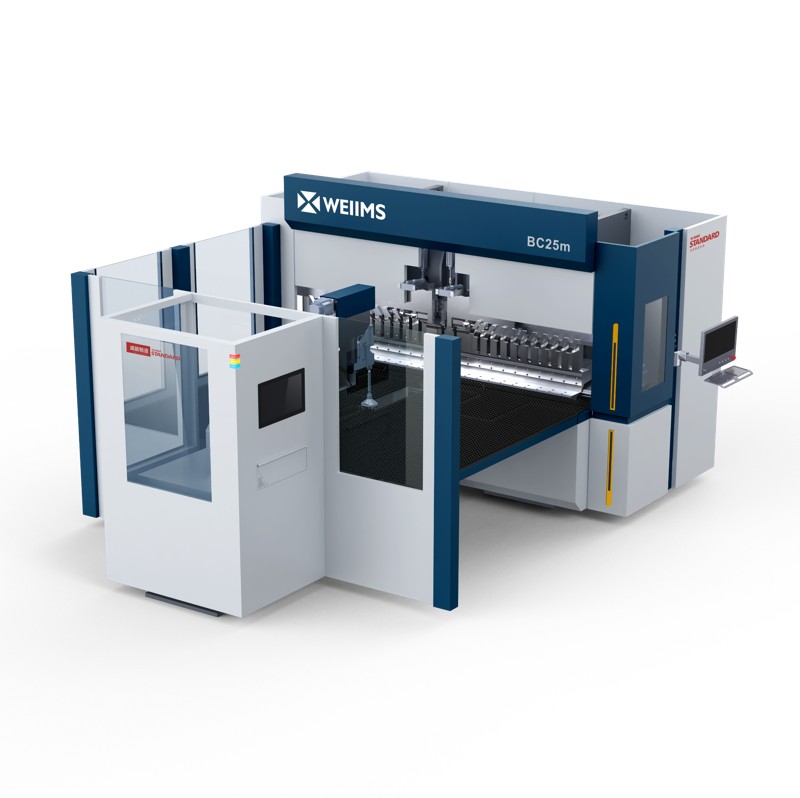

The BC25M series multilateral bending center has been tested by various customer groups and has high stability, precision, and stability. It has been widely recognized by the customer group, and prices may vary due to fluctuations in raw materials and transportation costs. If you need to purchase a edge bending center, please contact us for the latest quotation.

Supplier of multilateral bending centers:

Zhejiang Weiims Intelligent Equipment Co., Ltd. is a high-tech enterprise that integrates the research and development, production, and sales of sheet metal flexible manufacturing technology. Our products include intelligent flexible rice metal punching and shearing production line, intelligent fully servo bending machine, intelligent multilateral bending center, intelligent flexible welding line, intelligent laminated plate production line, etc. These products have the characteristics of high precision, high efficiency, and high flexibility, which can meet the production needs of different industries and enterprises of different scales. If you have any questions, please leave your contact information and we will contact you within 24 hours.

Parameter Name		Unit	BC25M
Plate length		mm	370-2500
Plate width		mm	200-1500
Maximum diagonal dimension		mm	2915
Maximum bending height		mm	220
Maximum bending speed		S/C	0.3S/C
Number of axes			A total of 21 axes
Work table height		mm	850
Conventional bending plate thickness	Cold plate	mm	0.4-2.0
	304 stainless steel	mm	0.4-1.2
	201 stainless steel	mm	0.4-1.2
	Aluminum plate	mm	0.4-2.5
Bending accuracy (based on 1mm cold plate)	Angle deviation (full length)	’	±40’
	Straightness and parallelism	mm	0.6mm
	Bending plate appearance tolerance	mm	±0.2mm
Bending process			Automatic tool change
Minimum bending height			5 times the thickness of the plate T
