Product Description

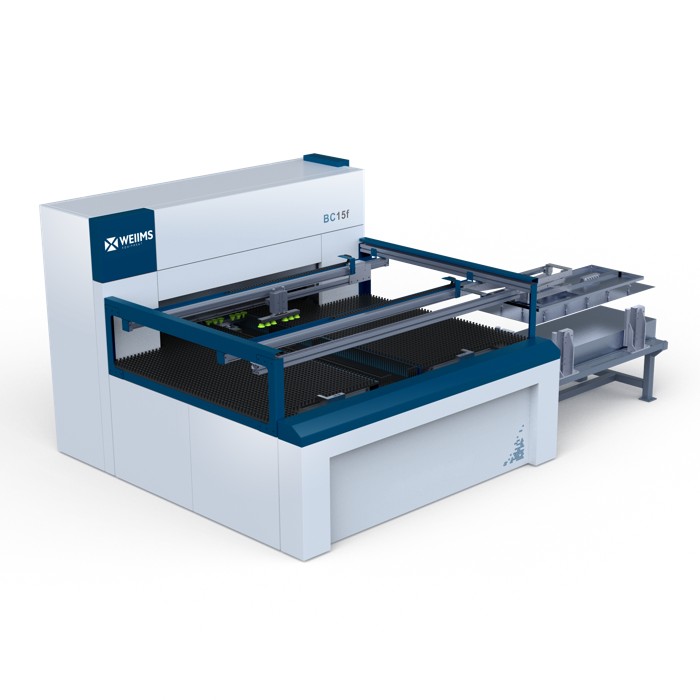

Edge bending center Details:

The edge bending center is a kind of equipment used for the forming and processing of sheet metal, especially for the processing of sheet metal, which has its unique advantages for the processing of file cabinets, storage shelves and express cabinets. The sheet material is placed on top material by manual or automatic feeding system, and the bending process starts automatically. After bending is completed, it is placed in the unloading area by automatic feeding system. Palletizing can be either manual or mechanical arm.

The whole machine includes: servo system, CNC system, human-computer interaction system, automatic feeding system, automatic lubrication system, pneumatic system, automatic feeding system (optional), palletizing robot (optional)

Edge bending center characteristics:

l drive shaft adopts servo motor, no hydraulic oil and seal consumables, eliminate pollution sources, compared with the traditional electro-hydraulic servo bending machine energy-saving effect is obvious and easy to maintain.

l Sheet metal forming, high speed and high precision operation.

l bending program editing is easy to understand, convenient and fast, high degree of automation.

l0.3 seconds per tool bending speed, automatic edge change, plate in, parts out, bending efficiency is 2-3 times that of conventional CNC bending machine, greatly improve production capacity, save labor costs.

Edge bending center system functions:

After the coil material is cut by the laser or punching system, the bending operation is carried out, the equipment is started, the length and width of the plate are input, the system will automatically calculate the weight of the plate and match the running speed. When the equipment is running, the plate material is placed in the upper material area, the system will detect whether the position of the plate material is appropriate. After the plate material is detected by the sensor in the loading area, the equipment will start the bending process. After bending and forming, it is placed in the set area, and the automatic blanking system begins to work after detecting the signal, and the bent workpiece is transported to the blanking trolley. At this time, the feeding area can be discharged again, which can achieve uninterrupted operation and greatly improve production efficiency. The system can automatically count, to the set amount, the system will stop working. When the device fails, the system will automatically pop up the fault location and fault code to facilitate troubleshooting. The bending procedure is simple to understand, easy to operate and ergonomic design. The lubrication system works from scratch.To effectively reduce friction resistance.

Application range of edge bending center:

Suitable for: office furniture, steel file cabinets, storage shelves, dense shelves, shelves, express cabinets, medicine cabinets, shoe cabinets manufacturing.

Use steps of edge bending center:

After the device is turned on, a new program is created according to the thickness and length and width of the current plate, and the system automatically matches the speed. After editing the program, the program is saved and can be called directly when the next use is completed. The equipment starts, the system automatically opens or expands according to the length of the plate to ensure that the plate is placed in the appropriate position, the feeding start can be selected to start the button or the sensor, when the sensor is selected to start, the feeding position can be set to open a certain distance, convenient for workers to better feed, the equipment automatically bends after starting, bends once forming, and is sent to the cutting position after completion. The blanking system starts to work and is transported to the receiving platform, which can be reinforced spot welding with the welding machine (optional) and palletizing with the blanking robot arm (optional).

Edge bending center through a variety of customer groups test, with high stability, high precision, high stability, widely recognized by the customer group, affected by the fluctuation of raw materials and transportation costs of the price will change, if you need to buy edge bending center, please contact us to get the latest quotation.

Supplier of BC Series Edge bending center:

Zhejiang Weiims Intelligent Equipment Co., Ltd. is a high-tech enterprise that integrates the research and development, production, and sales of sheet metal flexible manufacturing technology. Our products include intelligent flexible rice metal punching and shearing production line, intelligent fully servo bending machine, intelligent multilateral bending center, intelligent flexible welding line, intelligent laminated plate production line, etc. These products have the characteristics of high precision, high efficiency, and high flexibility, which can meet the production needs of different industries and enterprises of different scales. If you have any questions, please leave your contact information and we will contact you within 24 hours.

Plate length (minimum to maximum)	240mm~1500mm
Plate width (minimum to maximum)	240mm~600mm
Maximum bend height	60mm
Maximum Bending Speed (second / knife)	0.3
Working table height	850mm
Conventional bent plate thickness	Cold plate: 410 N/mm2  0.4mm~0.8mm
Parallelism and straightness	0.6mm
Minimum height of bending plate	Five times the thickness of the plate T
Power supply capacity	three-phase four-wire 380V
bleed pressure	≥0.6Mpa
Overall dimension	2500mm~2560mm~1800mm
