Product Description

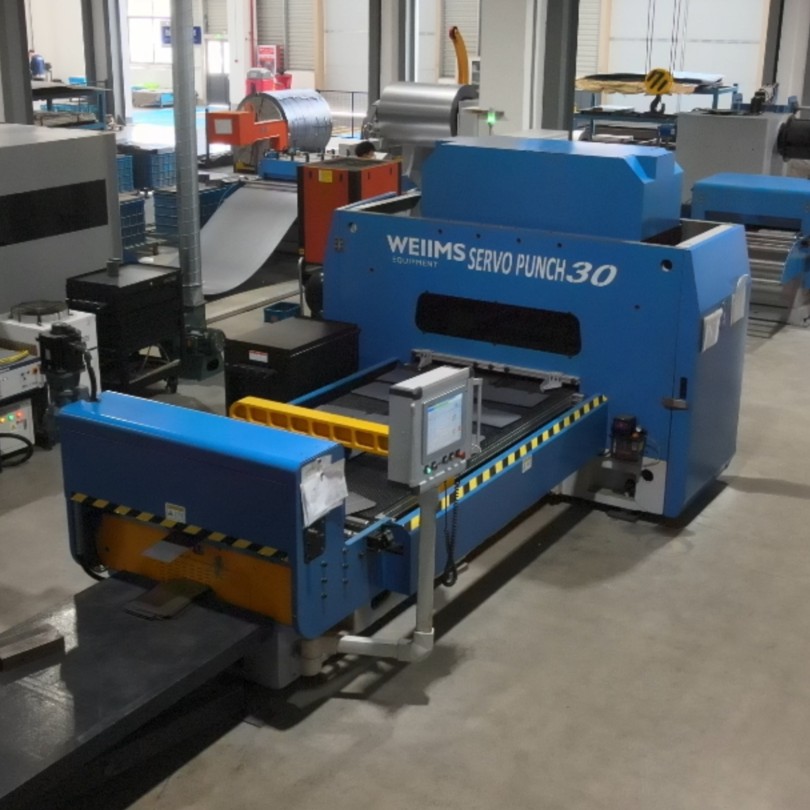

PC series CNC sheet metal flexible punching cutting production line details:

Numerical control sheet metal flexible cutting wire is a kind of automatic sheet metal processing production line, mainly used for sheet metal cutting processing, professional used for stamping a variety of thin metal sheet, stamping 0.4-3mm of a variety of metal materials. Numerical sheet metal flexible production line includes charging frame, precision leveler, main frame, main frame, mold warehouse, strike unit, active force, feeding unit, shear unit, palletizing unit and so on.

Characteristics of PC series CNC sheet metal flexible punch-cutting production line:

The main part of the machine adopts casting structure, imported high precision wire rod and linear guide rail, smooth transmission, high precision.

The bed body, beam and worktable are made of castings. According to the standard system of large machine tools, stress annealing after rough processing and then vibration aging treatment, which can completely eliminate the stress of castings and processing, and maintain high strength and high precision.

X and Y axis are imported from Japan, high precision, high speed, large torque, large inertia, stable and durable performance. Ensure the high speed and acceleration of the whole machine.

Based on Taiwan SYNTEC operating system, the integration of flexible punch control special function module, powerful

Good man-machine interface, easy to operate. Same wide width, quick replacement product.

Through the operating system to control the servo motor, so as to drive the parts to achieve stable, reliable, high-speed reciprocating movement, using numerical control programming and other programs to locate the parts, effectively ensure the transmission accuracy.

PC series CNC sheet metal flexible cutting production line system functions:

Automation: the system can realize the automatic operation of the whole sheet metal punching and cutting process, including the loading and unloading of the plate, punching, cutting and other links, to reduce the demand of manual operation and improve the production efficiency. Flexible machining: The system has the ability to automatically adjust and switch the punching and shear tools, which can meet the punching and shear requirements of different products. High precision machining: accurately control the position of punching and shear to ensure the accuracy and consistency of product processing. The system has the function of high-speed cutting, to quickly complete the sheet metal processing task.

PC series CNC sheet metal flexible cutting production line application scope:

Steel furniture, steel cabinet, electrical cabinet, express delivery cabinet, dense frame, etc

PC series CNC sheet metal flexible cutting production line use steps:

Open the electric cabinet total circuit switch, press the system power button, open the controller power, before the program running the rack leveling roll, ensure the mold drawings installed in place, will need processing program loading processing, open hand wheel simulation, hand shake out 2-5 pieces (each required size) has the wrong size to change in time, after confirm the open automatic mode.

Supplier of PC series CNC sheet metal flexible cutting production line:

Zhejiang Weiims Intelligent Equipment Co., Ltd. is a high-tech enterprise that integrates the research and development, production, and sales of sheet metal flexible manufacturing technology. Our products include intelligent flexible rice metal punching and shearing production line, intelligent fully servo bending machine, intelligent multilateral bending center, intelligent flexible welding line, intelligent laminated plate production line, etc. These products have the characteristics of high precision, high efficiency, and high flexibility, which can meet the production needs of different industries and enterprises of different scales. If you have any questions, please leave your contact information and we will contact you within 24 hours.

project	Specifications and technical parameters
nominal pressure	300kn
Maximum processed plate width	1250mm
Maximum processed plate thickness	3mm
Number of steps per minute	300cpn
Maximum primary punch diameter	88.9mm
The number of	40个
numerical control system	Taiwan Syntec
Numerical control axis number	9
working accuracy	0.1mm/m
bleed pressure	0.6kpa
electrical current	30A
Power capacity	50KVA
total power	55kw
