Product Description

AD series three in one feeder details:

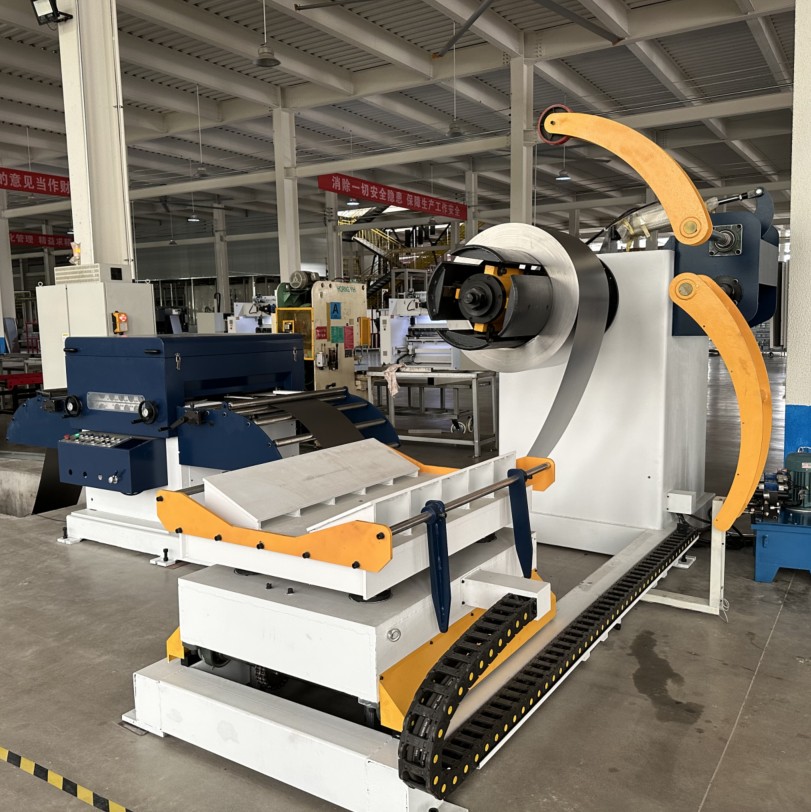

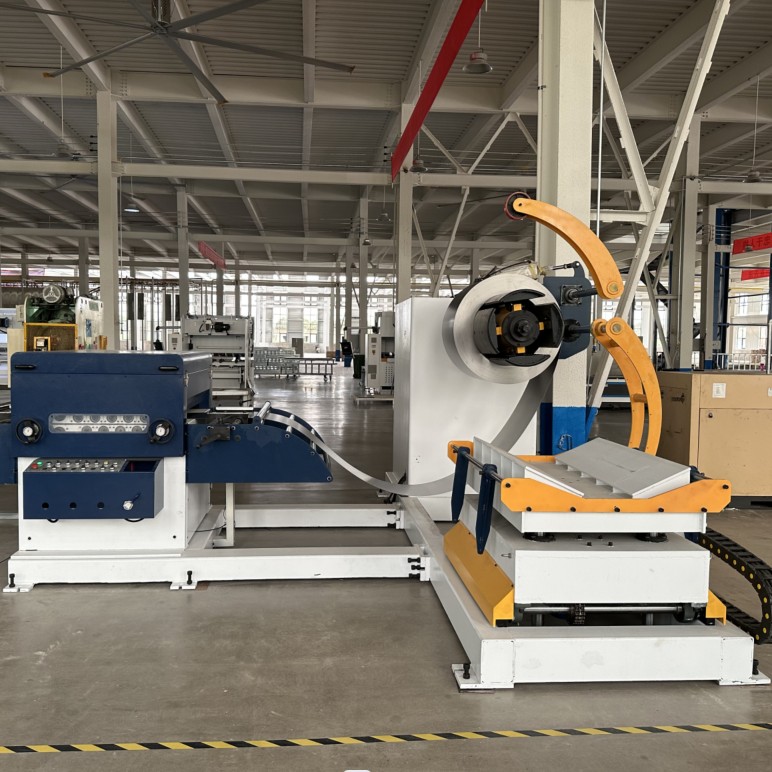

The three in one feeding machine is a comprehensive feeding equipment that integrates a feeding rack, leveling machine, and feeding machine. It has multiple advantages such as saving space, higher conveying accuracy, and more stable feeding. An automatic material pulling device specifically designed for thick and wide materials reduces the workload of workers, improves work efficiency, achieves zero risk feeding, and makes the operation more user-friendly.

AD series three in one feeder features:

The hydraulic expansion system facilitates the placement of materials by operators and improves work efficiency. The disc brake ensures more stable operation and stopping of the material rack. Avoid damage to the gearbox or chain due to inertial impact.

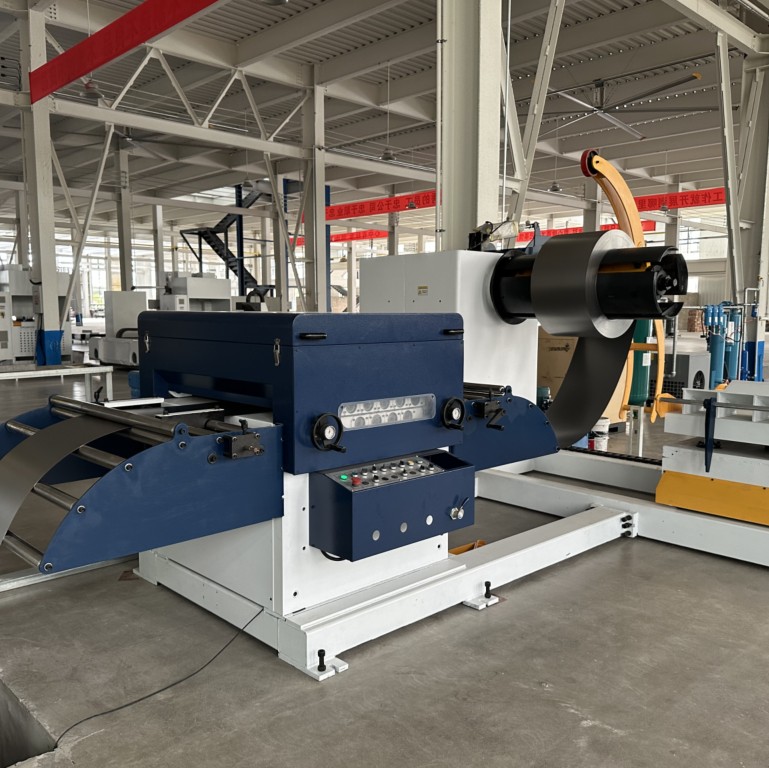

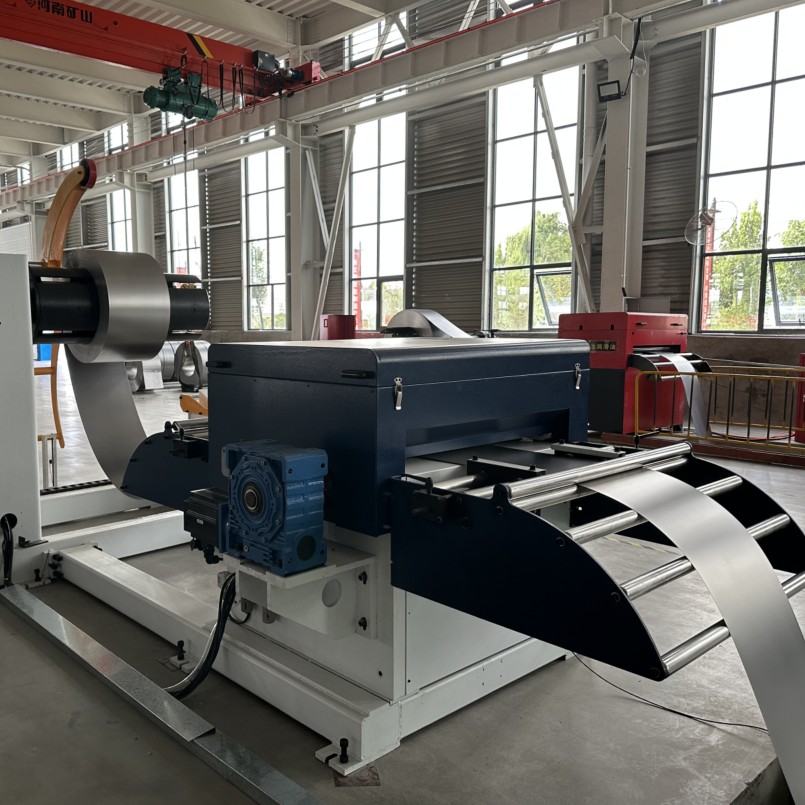

The leveling and feeding functions are located on the same plane, and are driven by high-power servo motors. The clamping coefficient increases, the slip probability decreases, and the feeding is more accurate. The machine head height can be adjusted up and down to match different mold heights.

An optional hydraulic trolley can be equipped for convenient loading, safe operation, and improved efficiency.

According to the strength of the steel plate used in the material, this model can be divided into two methods: pneumatic relaxation and hydraulic relaxation. The hydraulic relaxation speed is slower than pneumatic relaxation, making it suitable for leveling high-strength plates in the automotive industry. Pneumatic relaxation cannot meet the leveling requirements of high-strength plates.

AD series three in one feeding machine system functions:

The uncoiler is a support platform that fixes the material coil on the expansion and contraction part of the material frame spindle, supporting the inner diameter of the material coil. During automatic operation, the spindle is intermittently rotated to uncoil and discharge materials through the material ring control command. This includes the main shaft expansion and contraction part, the pressing arm part, the limit wheel part, and the material ring control part. The leveling feeder is a device that forms a material ring on the coil supported by the uncoiler, obtains a synchronous signal with the stamping machine, and sends a certain amount of material to the punching machine through the feeding roller to remove the bending deformation of the material coil through the correction roller. In addition, the leveling feeder has been designed and manufactured as a device for the stamping machine production line, with the main purpose of eliminating coil folding. When there is local elongation on the material, sometimes it cannot be completely corrected. The feeding mechanism is located at the end of the leveling mechanism, and after leveling, the belt roller synchronously rotates the feeding, and the input length is controlled by PCL to achieve feeding.

AD series three in one feeder application range:

The three in one feeding machine, also known as the three in one machine, leveling and straightening machine, multifunctional feeding machine, etc., is currently the ideal model for automated production of coil sheets in the precision punching industry, automotive industry, electronic consumer goods industry, aerospace, construction hardware industry, household appliances and other industries. Compared to traditional split type stamping automation production lines, this equipment has a compact structure and a small footprint High automation efficiency (fully automated completion of loading, feeding, uncoiling, leveling, and feeding), higher leveling accuracy (simultaneous operation of leveling and feeding on the same machine, which can effectively prevent the flattened sheet from rebounding due to internal stress and ensure leveling and feeding accuracy), better stability, and lower failure rate.

Usage steps of AD series three in one feeding machine:

Check the equipment status to ensure that it is in normal working condition. Check whether the feeding mode and speed of the feeding machine meet production requirements, and make adjustments as needed. Set the parameters of the feeding machine according to product requirements, including feeding speed, feeding length, feeding interval, etc. The automatic cycle feeding mode can be set as needed.

The AD series three in one feeding machine has been tested by various customer groups and has high stability, precision, and stability. It has been widely recognized by the customer group and is subject to price changes due to fluctuations in raw materials and transportation costs. If you need to purchase a edge bending center, please contact us for the latest quotation.

Supplier of AD series three in one feeding machines

Zhejiang Weiims Intelligent Equipment Co., Ltd. is a high-tech enterprise that integrates the research and development, production, and sales of sheet metal flexible manufacturing technology. Our products include intelligent flexible rice metal punching and shearing production line, intelligent fully servo bending machine, intelligent multilateral bending center, intelligent flexible welding line, intelligent laminated plate production line, etc. These products have the characteristics of high precision, high efficiency, and high flexibility, which can meet the production needs of different industries and enterprises of different scales. If you have any questions, please leave your contact information and we will contact you within 24 hours.

Plate width	70-1300mm
Plate thickness	0.4-6.0mm
Coil weight	7000kg
Outer diameter of coil	1400mm
Inner diameter of coil	508mm
Maximum feeding length	1000mm
Production line speed	16-24m/min
